User Update Integration

Roadmap

Setting up an API token for X-Faces to use

In the project settings, Other Settings tab, provide an APIToken variable, which will be used by X-Faces for accessing the endpoint for user updates.

Sending data about the updated user

In order for X-Faces to fetch the necessary information about the updated user you need to do the following:

1. Prepare a payload.

2. Send it to the specified endpoint.

Receiving request from X-Faces about the updated user

Next you need to provide an endpoint from which it will be possible for us to get the data:

1. During user creation, provide user_data_url field with a full URL of an endpoint using which X-Faces will be able to fetch the update data for this user.

Setting up an API Token for the project

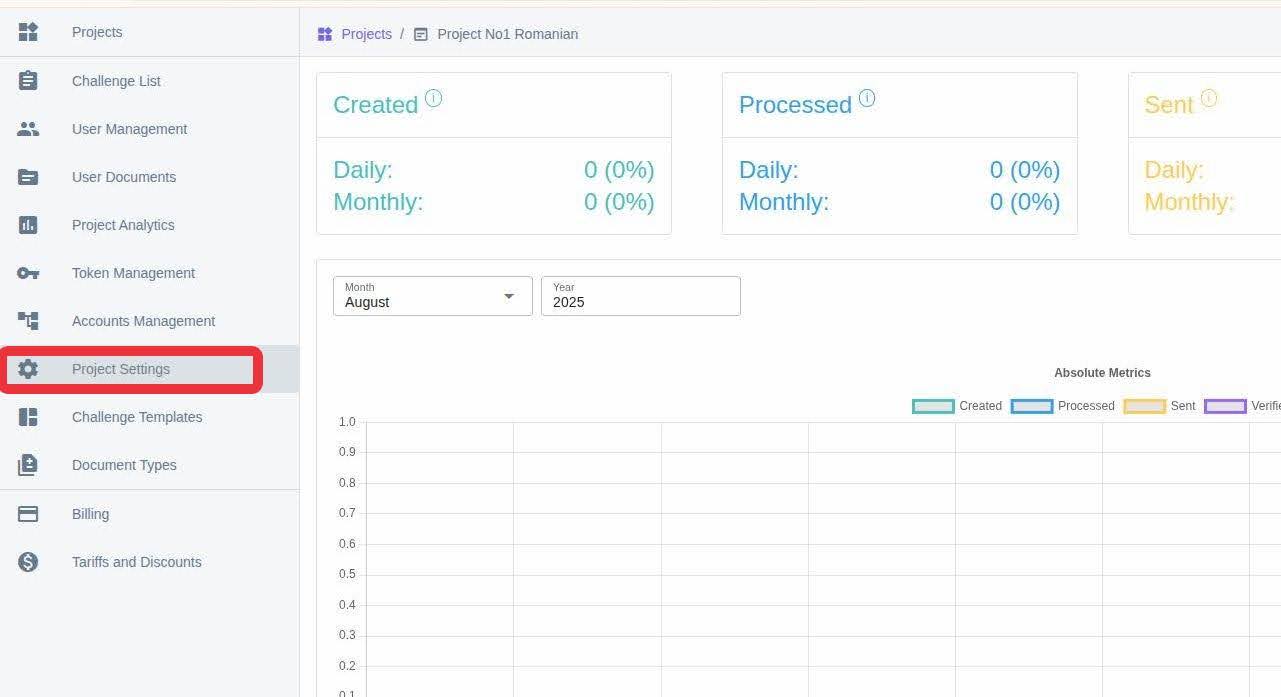

1. On the X-Faces board find Project Settings tab and click it.

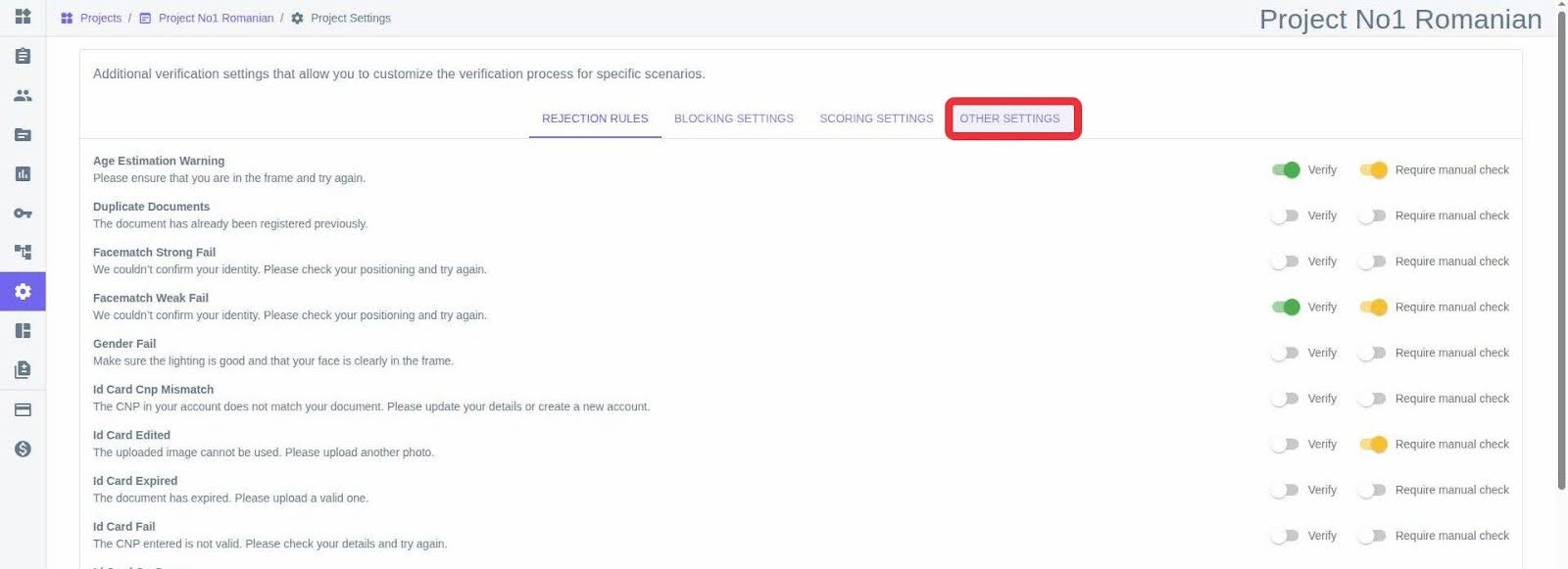

2. Click on Other Settings tab.

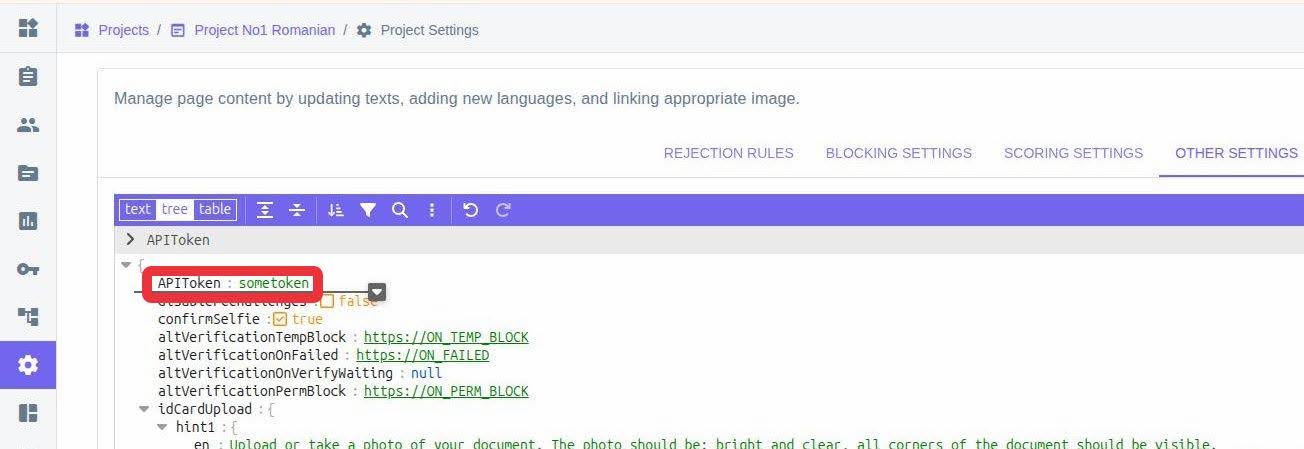

3. Create an APIToken variable and provide it with a value.

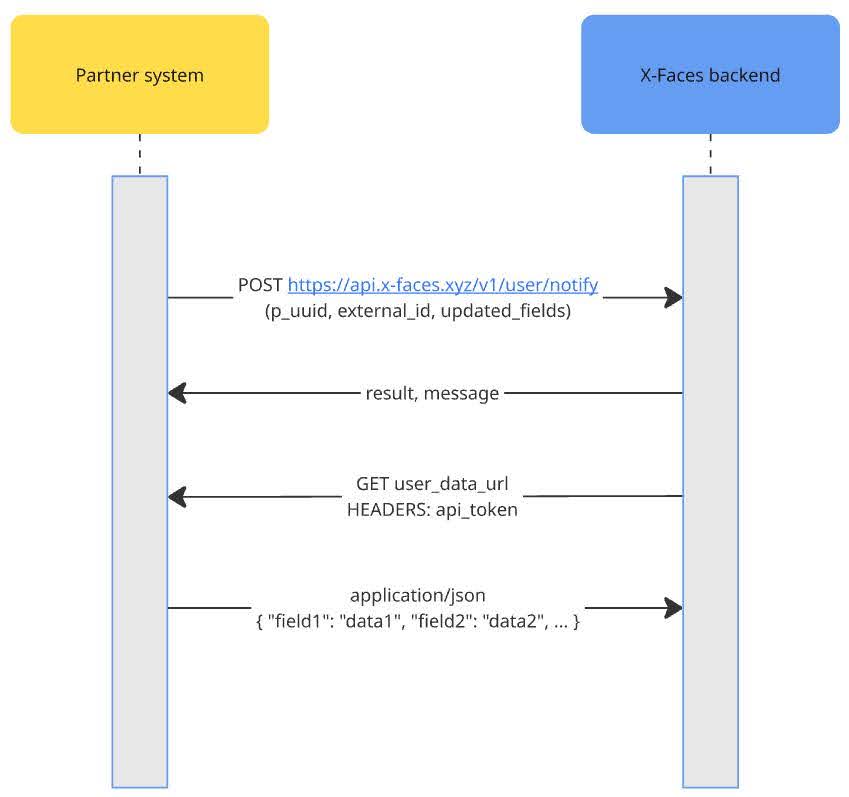

Expected workflow partner side

REST API for user updates

This API provides an endpoint to POST the update about the user. It returns the response to the POST request. Our system then makes a GET request to fetch the data for the specified user.

1. X-Faces

Endpoint

POST https://api.x-faces.xyz/v1/user/notify

Data structure

{
    "p_uuid": string uuid,
    "external_id": string,
    "updated_fields": array ["field1", "field2", ... ] // optional
}

• p_uuid – uuid string identifier of your project, in which the user is registered.

• external_id – user identifier in the external (your) system.

• updated_fields – optional parameter, which fields need to be updated.

Authentication

You need to add a token header with the value received from an x-faces representative.

Response Wrapper

Server JSON responses are wrapped as follows:

{
    "result": bool,
    "message": string
}

• result - whether the recognition of the bank card was launched successfully.
• message - optional message accompanying the result.

Possible result and message combinations

"result": true - the payload was successfully processed and the user was marked for update.

"result": false - an error occurred while processing payload.

"message": "Access denied" - auth token passed in the headers is incorrect.

"message": "Invalid payload" - endpoint received a payload that’s not corresponding with a schema.

"message": "User does not exist" - user with the specified external_id does not exist for the specified project.

2. Partner API

Endpoint

GET user_data_url

Authentication

We will take the APIToken variable from your project’s settings, Other Settings tab.

Response data structure

We expect to receive a payload of the following structure:

{
  "field1": ...,
  "field2": ...,
    ...
}
